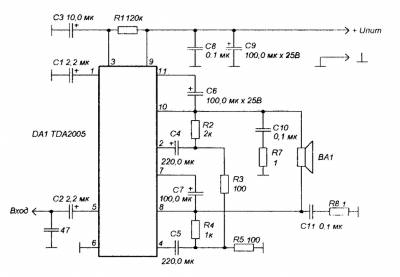

tda2005(мост 20Вт)

Основные характеристики
Диапазон воспроизводимых частот  30-18000 Гц
Напряжение питания  4-16 В
Коэффициент нелинейных искажений (не более)0,5%
Ток потребления (при Uвх=0) 70 мА
Выходная мощность (пик., при Uпит.=12 В):
  при R нагр. = 8 Ом  1х15 Вт
  при R нагр. = 4 Ом  1х22 Вт
Сопротивление нагрузки (не менее) 4 Ом
Коэффициент усиления по напряжению  200
Входное напряжение (не более) 250 мВ
